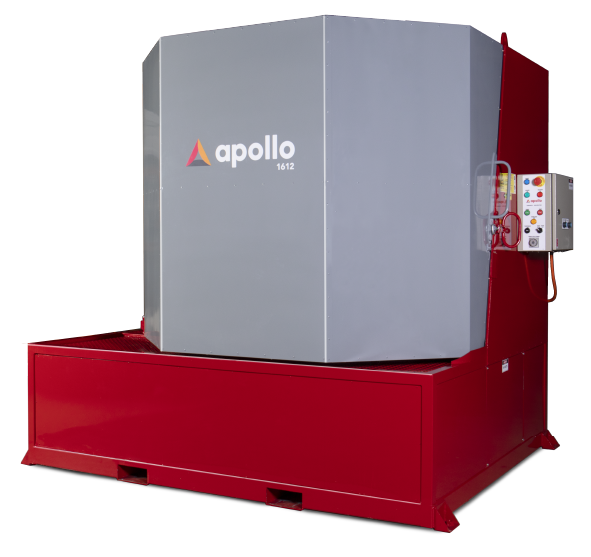

Spray Wash

The most efficient parts washer in the market

The refined design of Apollo’s aqueous spray washers make them one of the most efficient machines in the market in terms of performance and whole of life costs. The major benefits of the Apollo Spray wash include:

  • Certified fully compliant with AS4024 – Safety of Machinery to maximise operator safety
  • Gear drive turntable for controlled rotation speed
  • Automatic water level control and element protection
  • 7 day time clock for pre programmed operation of the heater elements
  • Adjustable cycle timer
  • Automatic pump-out of spent cleaning solution for ease of servicing
  • Options available such as, filtration, oil skimming, metallic particle separation and more



  • Only uses Hot Water + Detergent
  • Auto Pump out of waste
  • Auto Water Level Top
  • Gear Driven Turntable
  • 60% Better Cleaning Efficiency than other brands
  • Heavy Duty, Aussie Made

Cleaning Efficiency

Models Specs

SW800 SW1100 SW1400 SW1409 SW1612 SW2023 SW3216 SW3810 TW300
  • Basket Diameter
    810mm
  • Job Weight (Maximum)
    400Kg
  • Job Height (Maximum)
    470mm
  • Water Capacity
    120L



  • Pump
    2.2Kw
  • Power Outlet Required
    20A, 415V 3 Phase
  • Heaters
    3 x 2.4Kw
  • Basket Diameter
    1100mm
  • Job Weight (Maximum)
    750Kg
  • Job Height (Maximum)
    630mm
  • Water Capacity
    250L



  • Pump
    4Kw
  • Power Outlet Required
    20A 3 Phase
  • Heaters
    3 x 2.4Kw
  • Basket Diameter
    1400mm
  • Job Weight (Maximum)
    1000Kg
  • Job Height (Maximum)
    660mm, optional 760mm
  • Water Capacity
    330L



  • Pump
    5.5Kw
  • Power Outlet Required
    32A 3 Phase
  • Heaters
    3 x 3.6Kw
  • Basket Diameter
    1400mm
  • Job Weight (Maximum)
    2000Kg
  • Job Height (Maximum)
    975mm
  • Water Capacity
    360L



  • Pump
    5.5Kw
  • Power Outlet Required
    32A 3 Phase
  • Heaters
    3 x 3.6Kw
  • *SW1409 available in Rinse and Divert models
  • Basket Diameter
    1600mm
  • Job Weight (Maximum)
    2000Kg
  • Job Height (Maximum)
    1200mm
  • Water Capacity
    450L



  • Pump
    5.5Kw
  • Power Outlet Required
    32A 3 Phase
  • Heaters
    3 x 4.8Kw
  • *SW1612 available in Rinse and Divert models
  • Basket Diameter
    2000mm
  • Job Weight (Maximum)
    4000Kg
  • Job Height (Maximum)
    1350mm or 2300mm
  • Water Capacity
    800L
  • Pump
    2 x 5.5Kw
  • Power Outlet Required
    62 amp
  • Heaters
    2 x 14.4Kw
  • *SW2023 available in Rinse and Divert models
  • Basket Diameter
    3200mm
  • Job Weight (Maximum)
    4000Kg
  • Job Height (Maximum)
    1600mm
  • Water Capacity
    1000L



  • Pump
    2 x 5.5Kw
  • Power Outlet Required
    62 amp
  • Heaters
    2 x 14.4Kw
  • *SW3216 available in Rinse and Divert models
  • Maximum Part Length
    3500mm
  • Job Weight (Maximum)
    3500Kg
  • Job Height (Maximum)
    860mm
  • Water Capacity
    1200L



  • Pump
    3 x 5.5Kw
  • Power Outlet Required
    80A 3 Phase + Neutral + Earth
  • Heaters
    3 x 14.4Kw Tube Element
  • Spray Bars
    1 x External Rotary Power Driven
    1 x Internal Rotary Hydrostatically Driven
  • Conveyor Length
    2000mm*
  • Conveyor Width
    400mm*
  • Job Height (Maximum)
    300mm*
  • Water Capacity
    500L



  • Pump
    2.2Kw
  • Power Outlet Required
    32A 3 Phase
  • Heaters
    6 x 3.6Kw
  • *Configurable design options available

Case Studies

  • Walters Fencing
  • Maskill
Walters Fencing

“Apollo’s laser cutting services have become pivotal to Walters Fencing, eliminating the difficult task of fabricating by hand and minimising the time spent on machining and fabrication. We’ve maintained a good relationship with Apollo over the years. The team are very friendly, engaging and reliable and continue to assist in achieving desired outcomes that help our business grow.”

- Don Pollard - Lead Designer/ Production Manager


Maskill

"Maskill is the leading undercarriage solutions provider in Australia. We engaged Apollo Engineering to design, develop and manufacture a parts washer to eliminate the need for us to manually high pressure clean the undercarriage components. Apollo worked with us through the entire process to ensure we got what we needed. Like any prototype, we had initial teething issues but Apollo supported us every step of the way! By automating our cleaning processes, we're saving hours per job!"

- Casey Maskill, Supply Manager
